L&F Nimbus 3960 Digital Combination Lock

Description

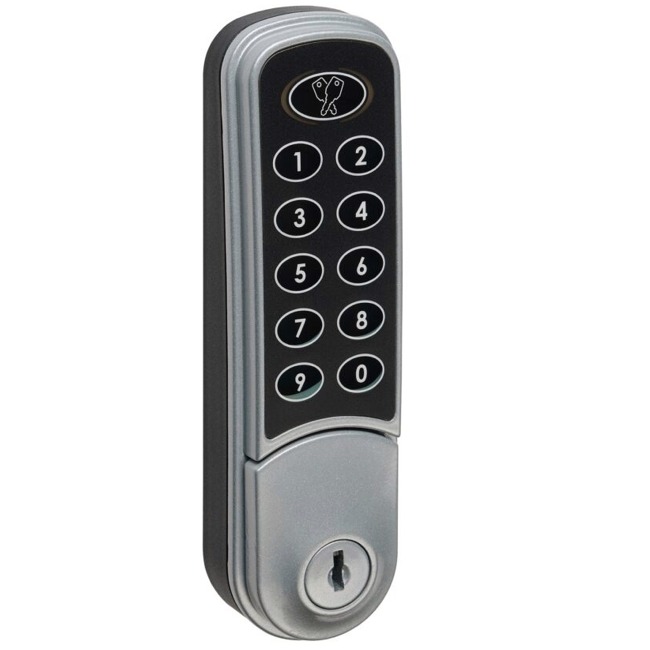

Lowe & Fletcher Nimbus 3960 Digital Combination Lock

The Nimbus 3960 Digital Combination Lock utilises the proven internal mechanism of the bestselling digital locks in a slimmer, more aesthetically pleasing design. Incorporating a membrane touch keypad, the illuminated ‘halo’ around the logo button signals button presses and operations on the lock.

A standard feature with all our digital locks is the steel override key which can be used to bypass the keyless locking feature when immediate supervisory access is necessary.

The Nimbus range of locks are all designed to fit the same footprint as our standard digital combination range (3780), making them easy to upgrade or retro-fit to existing installations.

Available in public, private and RAS remote allocation modes, these locks can be used on endless applications including lockers, furniture, parcel boxes and general enclosures.

For further information email or contact us on 01268 661318.

User, Programming and Installation instructions can be found in the Downloads section below.

Standard Features

• User codes: 8-digit master code; 6-digit sub-master code; 4 or 6-digit user code
• Auto-Unlock: Can be setup to required time/hours

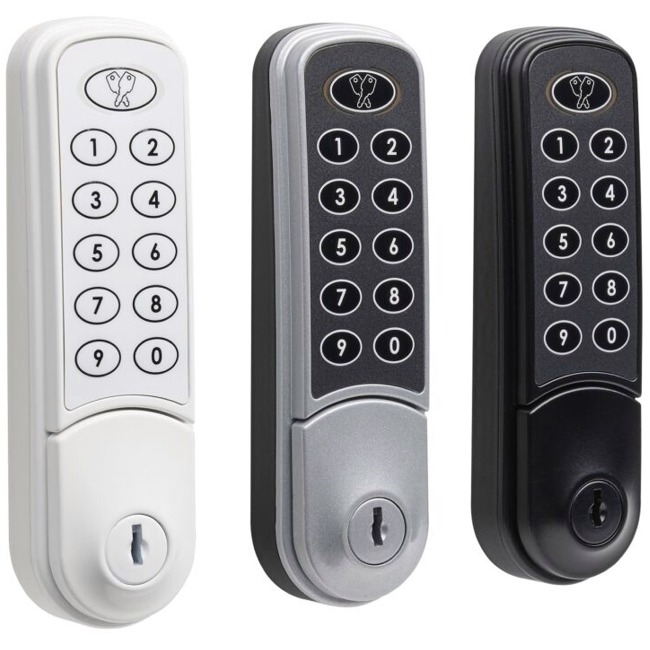

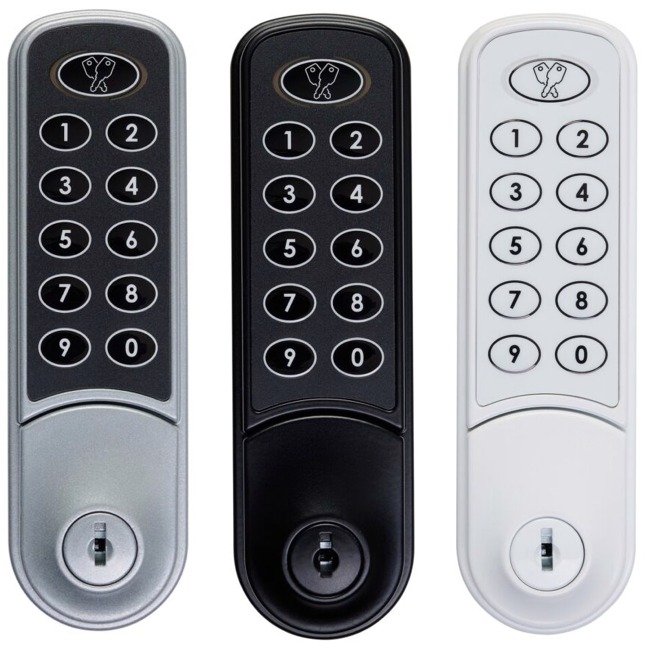

• Standard finishes: Black, Silver or White (Chrome and brushed nickel finishes available on request)
• Orientation: Vertical, left or right hand fixing (MOQ will apply on left hand fixing)

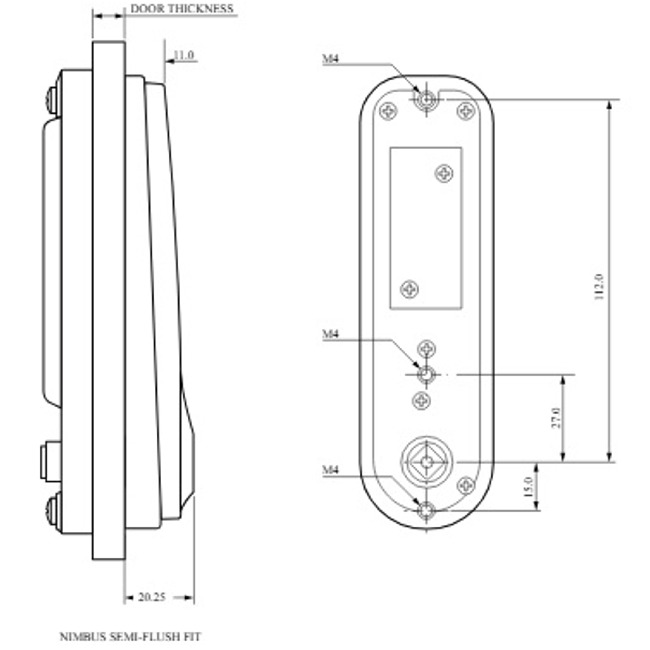

• Fitting options: Surface mount or semi-flush fitting (maximum 20mm protrusion)
• Materials: solid zinc alloy

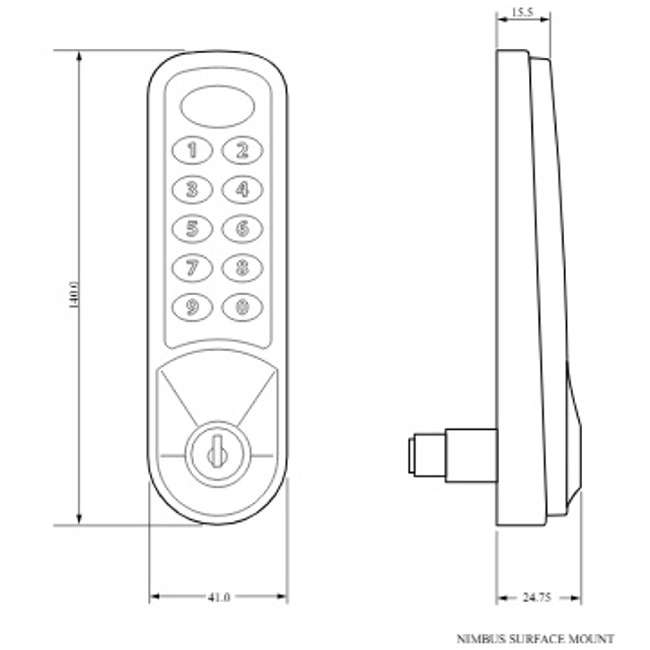

• Fixing: 2 or 3 point fixing (see dimension drawing)
• Cam: wide variety of cams
• Spindle length: 20 or 24mm
• Batteries: 2 x AAA (included) – up to 50,000 cycles per pair of batteries
• User Modes: Public mode, private mode, technician mode or RAS (available on request)
• Key Override: Keys available seperately
• Keypad: 10-button keypad

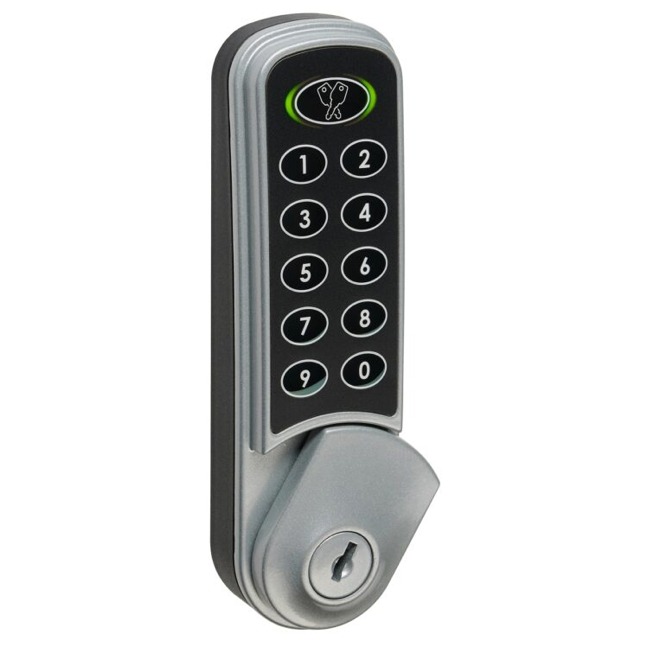

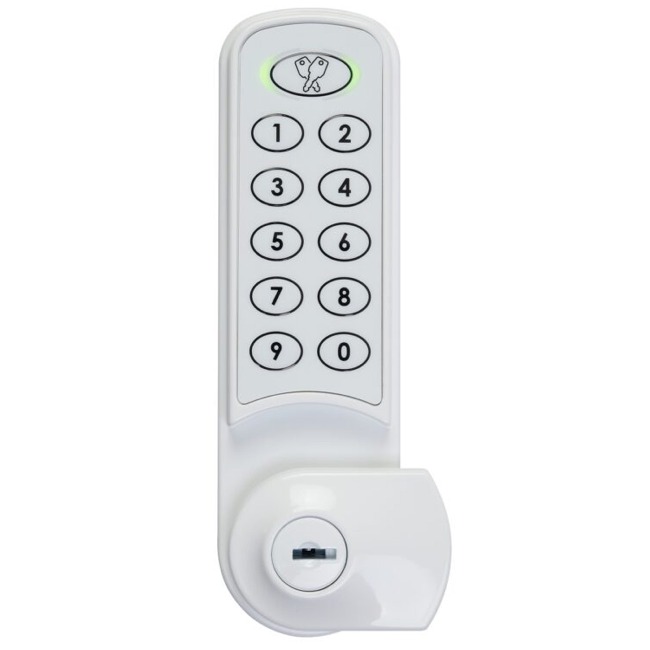

• LED indicator: lights around logo button
• Lock-out Protection: Multiple incorrect code timed lock-out protection
• Battery condition indication
• Fits standard 3780 digital combination lock piercing
• Manufactured in the UK

Optional Features

• Audible keypad
• Door open alarm
• Pre-programmed modes and codes
• Customised logo

DOWNLOAD NIMBUS 3960 DATASHEET

DOWNLOAD L&F SMART LOCKING BROCHURE

For expert advice please contact our sales team.
