Kitlock KL1000 Classic Combination Lock

£44.00 ex vat

The KL1000 electronic combination lock are a quick retrofit for keyed cam locks supplied as standard on a wide range of lockers, cabinets and cupboards. The keyless locks are easy to fit, taking just a few minutes to remove the existing cam lock and then making an additional top fixing.

The orders of 4+ units or projects please contact us for a price.

SKU: KIT/KL1000/CLASSIC Categories: ,

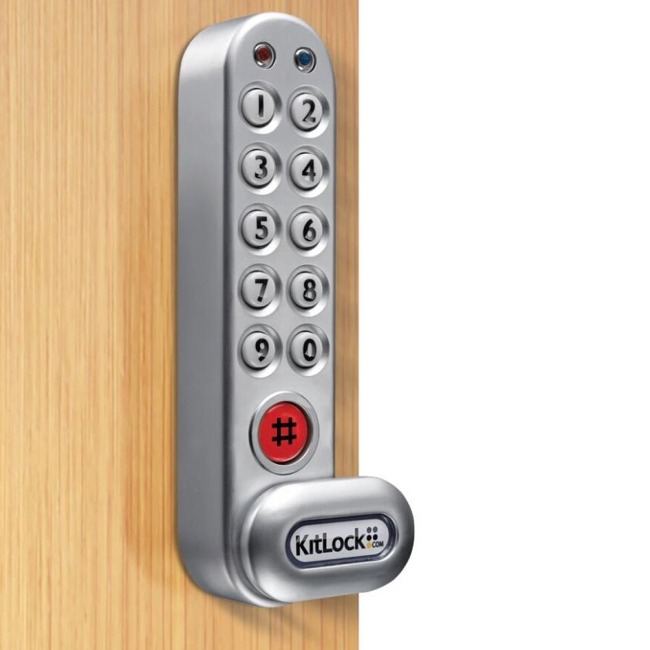

Kitlock KL1000 Classic Electronic Combination Lock

This neat lock is easy to fit, taking just a few minutes to remove the existing cam lock and making an additional top fixing. The KitLock KL1000 Classic Lock can also be fitted to a locker or cabinet that does not have an existing locking device – just drill another hole. Once in place the lock will perform up to 15,000 openings on just two AAA batteries. Access control without the need for keys.

Key Features

  • 11 button keypad
  • 8 digit Master and Sub-Master Code
  • 4 digit User Code
  • 6 digit Technician Code
  • Left hand and right hand versions available
  • Up to 15,000 operations from 2 x AAA batteries (supplied)
  • Battery override
  • Slam latch accessory available
  • IP55 rated when fitted with gasket
  • All parts / fixings / templates included


Private Function

This is the default function and is already pre-programmed in new locks. This function is used where the same code will be repeatedly used, e.g. an employee with the same locker/drawer in the workplace.


Public Function

In this function the KitLock operates with a single User Code. The user enters a personal four digit code, this locks the lock. The same code is entered once only to open the lock before automatically being erased and ready for the next user. This function is used for short term, multiple occupancy applications, e.g. hot desking in an office or a locker in a sports club.



  • Battery Override:  A 9 volt PP3 battery can be placed against external contacts
  • Buttons:  2 x 5 + Programming
  • Code Change Method:  Keypad (On Door)
  • Door Thickness:  Ready to fit doors up to 25mm (1”)
  • Finish:  Silver Grey, Black
  • Function:  Private, Public
  • Handed:  Non Handed
  • IP Rating:  IP55 when fitted with gasket
  • Keypad:  11 individual round buttons
  • Latch Type:  Cam
  • Lock Material:  Zinc Alloy
  • Low Battery Warning:  Red LED will flash on opening to indicate low battery
  • Memory:  Non-volatile memory will be retained
  • Operations:  Up to 15,000 opening per 2 x 1.5 AAA batteries

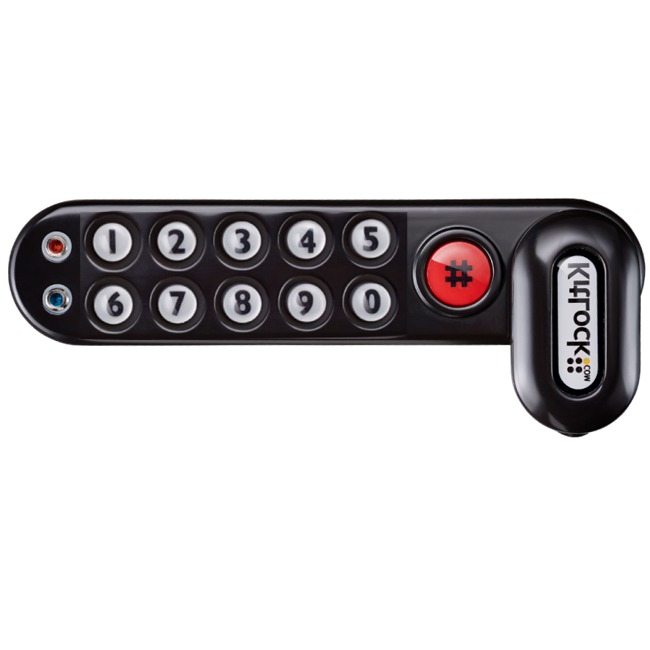

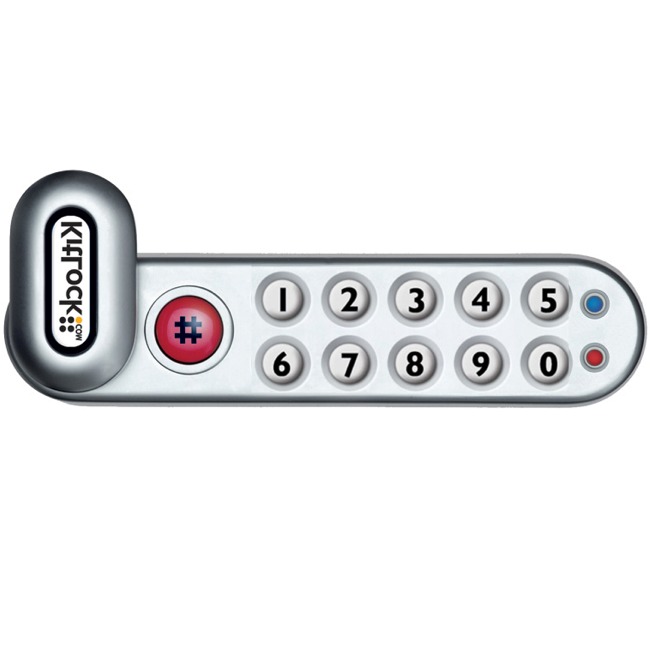

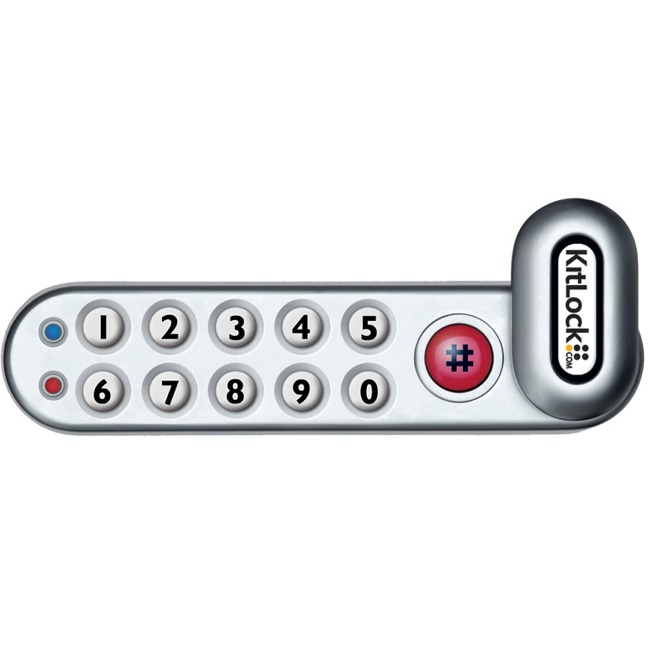

  • Orientation:  Vertical, Left Handed, Right Handed
  • Power:  2x AAA
  • Suitable For:  Internal, External
  • User Levels:  Master, Sub Master, Technician, Standard User
  • User Types:  Code



Anti-Bacterial Coating

Clean by KitLock features an ISO certified* photocatalytic coating which, when applied to our locks, offers enhanced protection against viruses, bacteria, germs and other environmental toxins. The coating utilises a process called photocatalytic oxidation, which means that the coating converts harmful bacteria and germs into a non-toxic compound, resulting in a clean and hygienic surface. The clear coating combats SARS-CoV-2 coronavirus (COVID-19) and can reduce bacterial growth by 99.96%*, providing an additional measure of protection over sanitisation.

Application lead time 7 to 10 working days.


*Codelocks and KitLocks electronic locks offer a two year guarantee and will be repaired, serviced or replaced free of charge if they develop a manufacturing fault. Faults caused by misuse, abuse and/or poor fitting are not covered by the guarantees

The orders of 5+ units or projects please contact us for a price.
